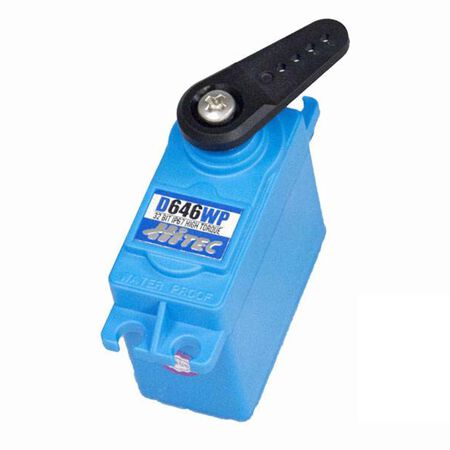

D646WP Standard Digital High Torque Waterproof Metal Gear Servo - HRC36646
| Maximum Servo Torque | 105oz/in @ 4.8V, 162oz/in @ 6.0V |
| Product Weight | 2.15oz (61.0g) |
| Spline Count | 24 - Tooth |
| Water-Resistant | Yes |
| Application | Sport Aircraft, Cars, Boats |
| Programmable | Yes |
| Servo Size Category | Standard |
| Current Draw Idle | 30 mA |
| Product Width | 0.83" (21 mm) |
| Current Draw Stall | 2,200 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Connector Type | Universal |
| Maximum Servo Speed | 0.24 sec/60 deg @ 4.8V, 0.16 sec/60 deg @ 6.0V |
| Product Length | 1.65" (42 mm) |
| Deadband | 4µs |
| Input Voltage | 6.0V ~ 7.4V |
| Product Height | 1.57" (40 mm) |
| Servo Type | Digital |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
